BR322 / BR316 / BR311 3V Lithium Pin Type Cell

Type: Lithium Carbon monofluoride (Li CFx). Notional Voltage: 3 V.

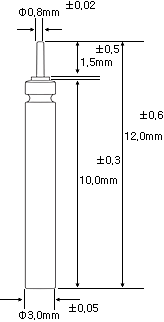

Length: 22.5 mm or 16.0 mm or 12.0 mm. Diameter: 3.0 mm.

Compatibility: Typical applications are powering LEDs for night fishing, flashing jewellery etc

Price: On application.

Specifications:

Light weight with aluminium case
High voltage compared with alkaline cells
Very small size
Family of three cells
Tolerates high and low temperature operation (-20 deg C to +60 deg C).

BR 322 Model Capacity (mAh) Weight (g) Dimensions (mm) BR322 20 0.36 3 x 22

BR 316 Model Capacity (mAh) Weight (g) Dimensions (mm) BR316 13 0.22 3 x 16

BR 311 Model Capacity (mAh) Weight (g) Dimensions (mm) BR311 11 0.20 3 x 12

Take a look at our full range on pin cells including pin cells pre-fitted with LEDs such as the R435r.
